NXT BACK SUPPORT HARDWARE

The QuickFit Mounting System

quick-fit-mounting-system

The QuickFit Mounting Hardware is very easy to install and is designed to open wide enough to wrap around the cane without taking it apart. The QuickFit hardware clamps fit multiple sizes of back cane tubing from 0.75-1” (1.9-2.5cm) without the need for any shims

  • Quickly and easily adjust while client is in the chair

  • Accommodates asymmetrical posture

  • Hardware is a discreet size and provides strength and rigidity to the back support

  • 5” (12.7cm) of depth adjustment, 2.5” (6.4cm) in front or behind back canes

  • Fits metric & imperial tubing including, 0.75-1” (1.9-2.5cm) back canes without shims

  • Reversible for increased range

  • 50˚ of angle adjustment (25˚ posterior and 25º anterior)

  • Adjustable for pelvic or trunk rotation

  • Install or remove clamps without taking them apart

  • Fits 3 widths of chair by adjusting mounting position [i.e. a 16” (40.6cm) wide back will fit a 16, 17, or 18” (40.6, 43.2, or 45.7cm) wide chair]

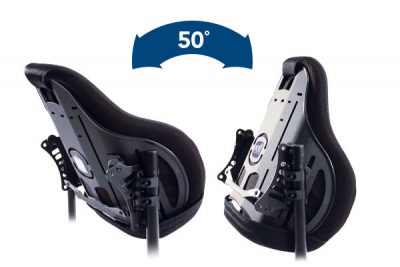

ANGLE ADJUSTABILITY OF 50°

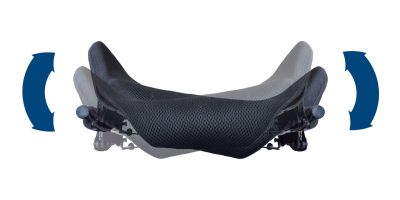

ACCOMMODATES ASYMMETRICAL POSTURE

ALTERNATE FIXED HARDWARE

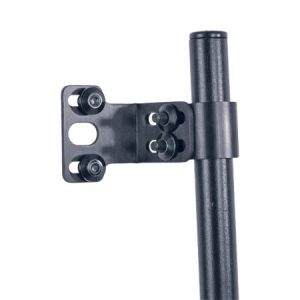

2 Point Micro Mount

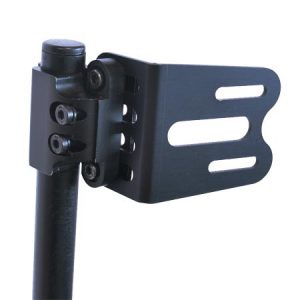

2 Point Mount

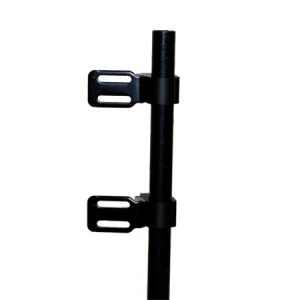

4 Point Mount
